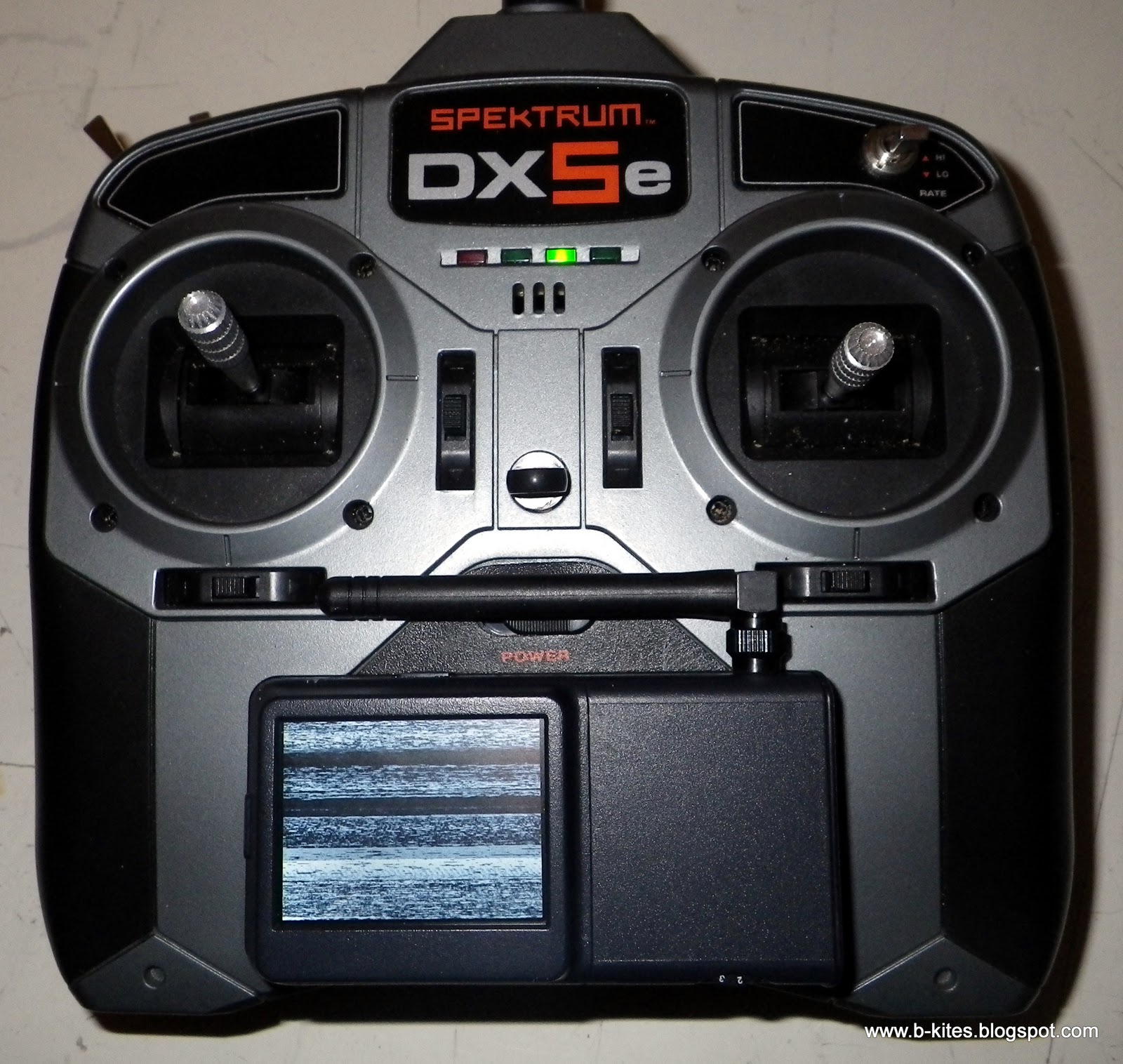

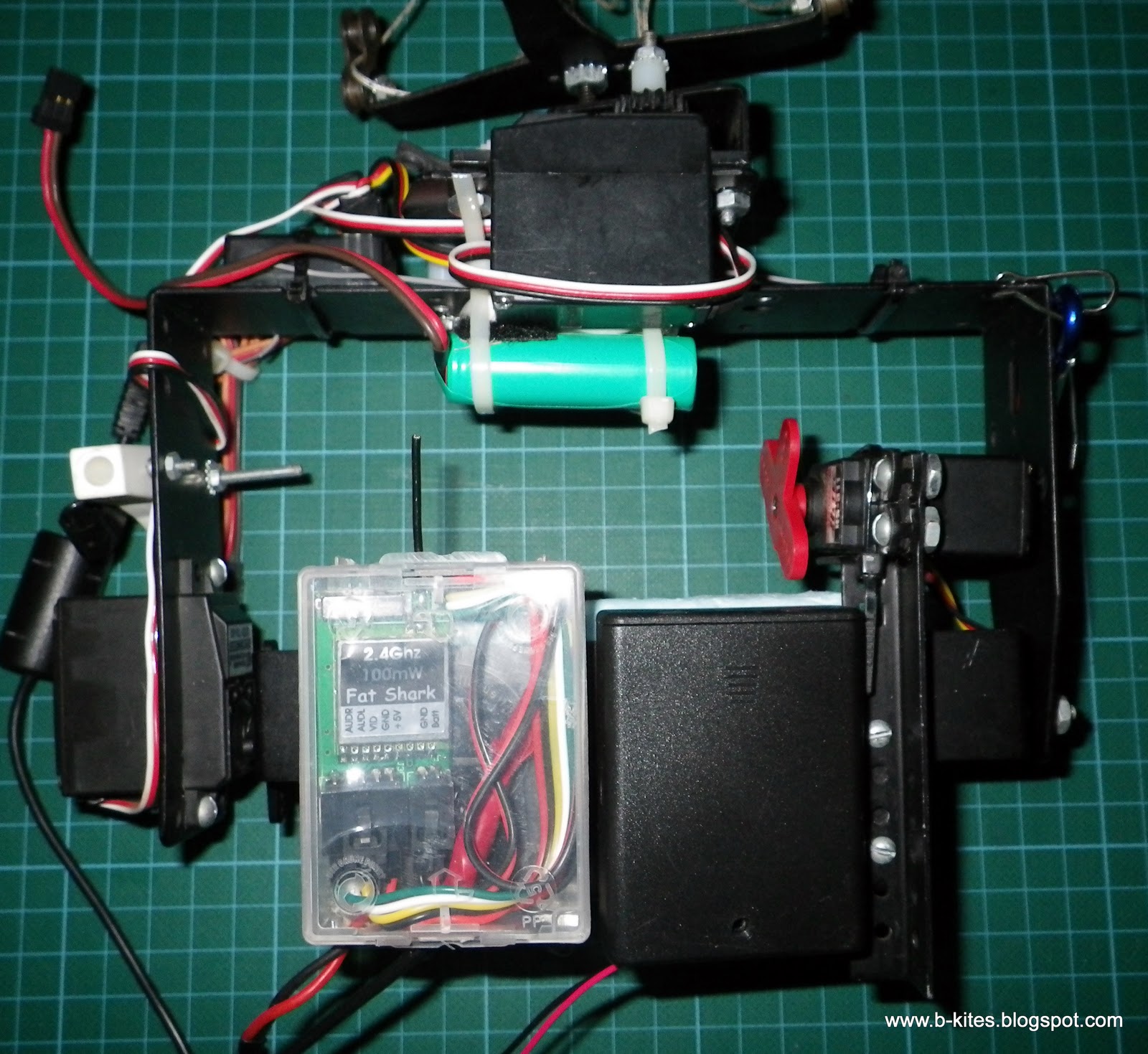

Finally I was able to install a downlink on my the Pentax W90 camera. I had to use the PC/AV port on the camera and Fatshark 100mw 2,4 ghz transmitter, good for transmitting the movie channel over 300 meter.  The ground station has a color screen and is very compact. The screen is (only) 5cm. I used Velcro to stick it on the RC. Depending on the location and circumstance I can connect the groundstation with my Samsung tablet PC using the USB port for a more detailed view (if needed).


Technical info of the downlink receiver:

Fréquence: 2,4 Ghz, 4 canaux disponibles: 2414 MHz, 2432 MHz, 2450 MHz et 2468 MHz (compatible émetteur 2,4GHz ImmersionRC, Fatshark et FlyCamOneTaille : 90 x 45 x 10 mmPoids : 60 gBatterie : 500 mAhRechargement par prise mini-USBAutonomie: 2 heures
Technical info on the Spectrum DX5e
  • # of Channels: .............. 5
  • Modulation:..................  DSM2
  • Band: ..........................  2.4GHz
  • Receiver:......................  AR500 5-Channel Full  Range Sport Receiver
  • Programming Features:.. Servo Reverse; Delta
  • Features:....................... Wing; HI/LO rates
  • Model Memory:............  1
  • Modes:.........................  Mode 2
  • Transmitter (Tx) Battery Type: 4 AA Alkaline
Key Features:
  • Includes AR500 5-channel full range sport receiver
  • Delta wing mixing
  • HI/LO rates
  • Servo reversing
  • JR and Spektrum compatible
